DC Input Field Rangeable Isolated Signal Conditioner Model DR4380A

DC Input Field Rangeable Isolated DIN Rail Mounted Signal Conditioner Model DR4380A

TERMINAL CONNECTIONS Power DC + Power DC -  Input + Input - Output + Output - (Terminal Labeled) 24 VDC + 24 VDC - Input + Input - Output + Output - Catalogue Manual

Features

	Provides a Galvanic Isolated DC Output Proportional to DC Input
	50 mV or 1 mA Minimum Input Span
	256 V or 100 mA Maximum Input Span
	Plug-in Screw Terminal Blocks
	21 to 28 VDC Power
	DIN Rail Mount - Case Only 0.5" Wide
	3 Year Warranty
	UL/cUL Recognized

Description

The DR4380A provides an isolated DC voltage or current output proportional to a DC voltage or current input. The input and output can be ranged in the field utilizing slide DIP switches. Zero and Span controls provide ±26% adjustability.

The DR4380A provides 3 way isolation between input, output, and power source. The isolation makes the product useful for measuring input signals with high common mode voltages and for breaking ground connections to eliminate ground loops. Its wide choice of inputs and outputs allow signal conversion and scaling as well.

The screw terminal blocks plug into the case, which allows easy wiring and removal of products.

All of the DR Series of products provide transient protection to help eliminate damage from lightning and from other transients created on the power and signal leads.

Typical Applications

Eliminates ground loops and common mode signals for voltage/current scaling or conversion, isolation, buffering, noise reduction. Single-unit replacement module provides all normal input and output ranges.

Mounting

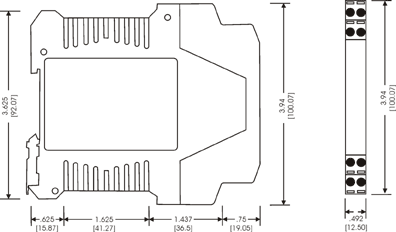

All DR Series products are designed to mount on a 35 mm DIN rail. The products feature a steel mounting clip, with a compression spring, for secure mounting.

Specifications
